Fleetwings Seabird

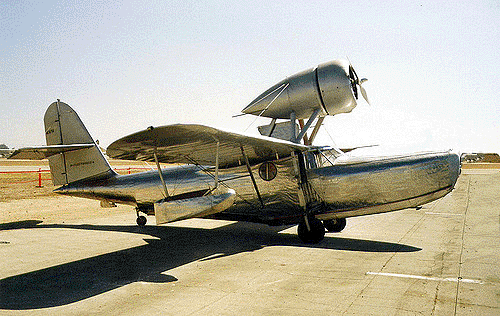

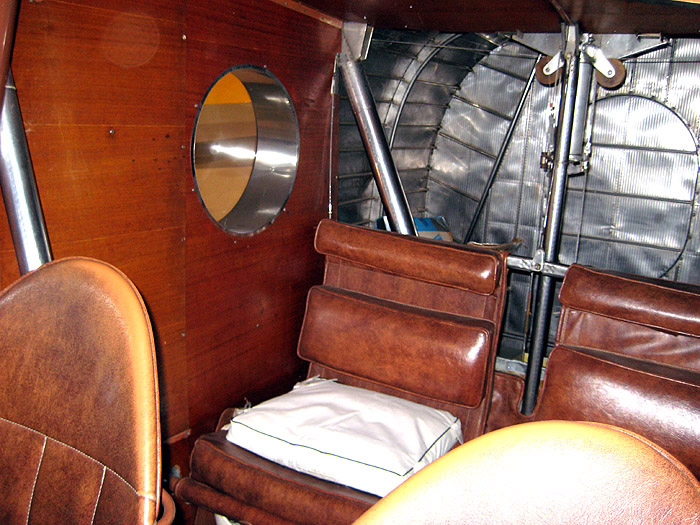

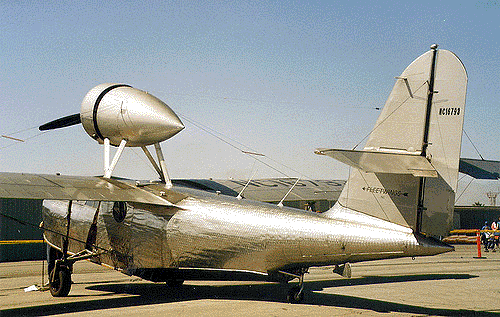

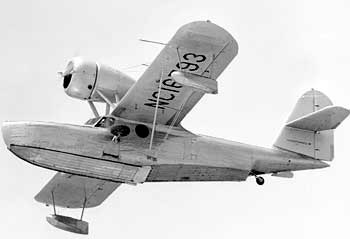

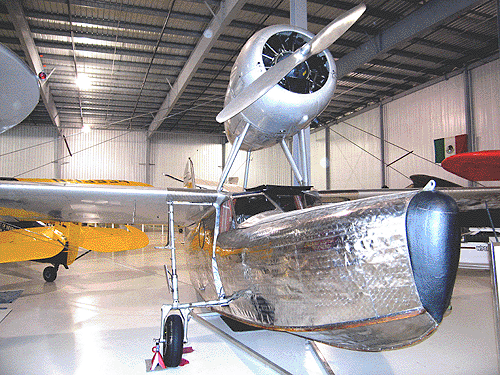

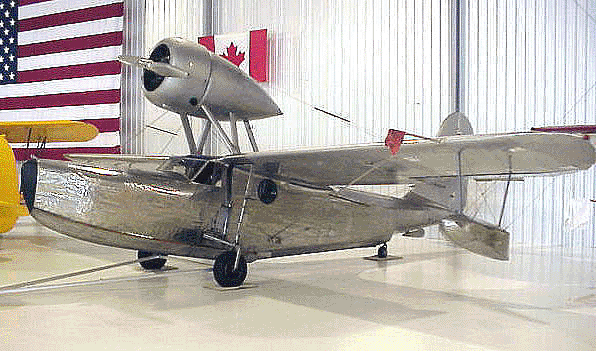

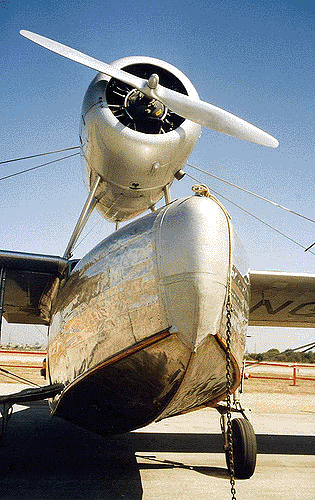

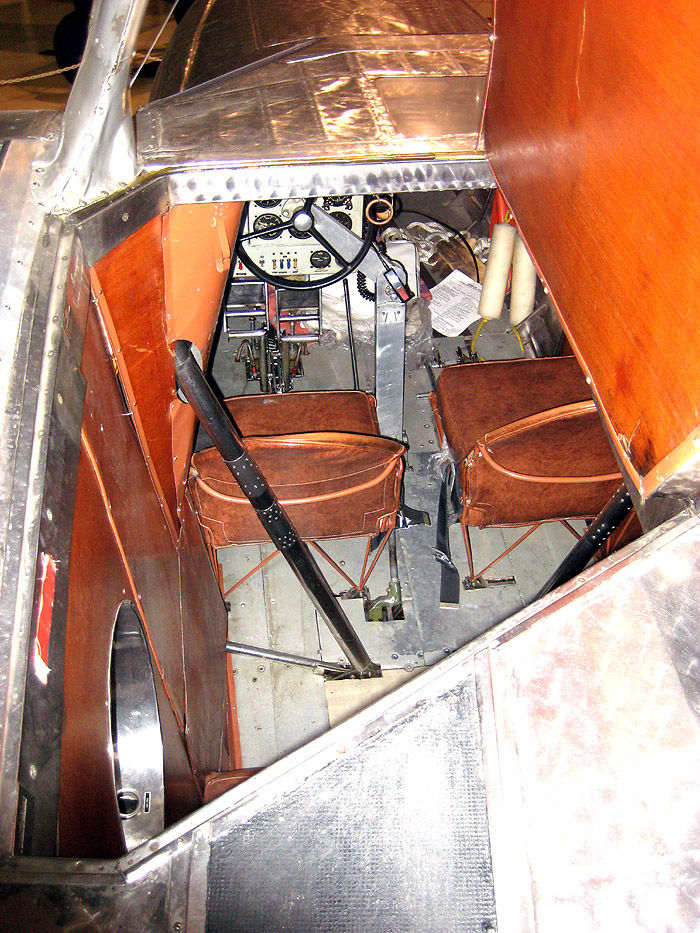

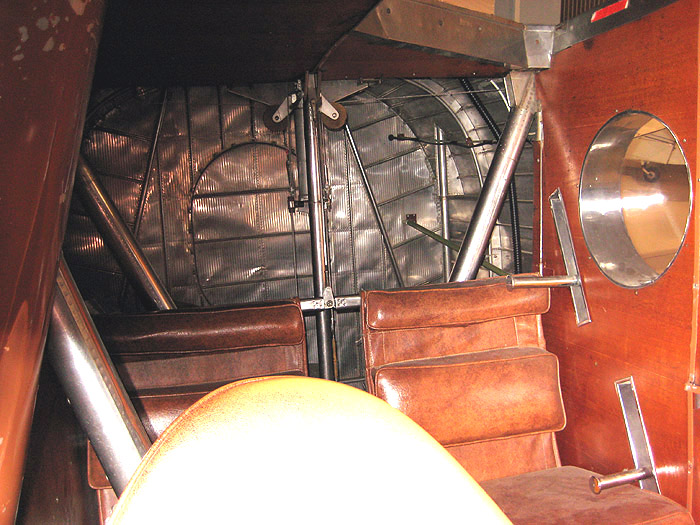

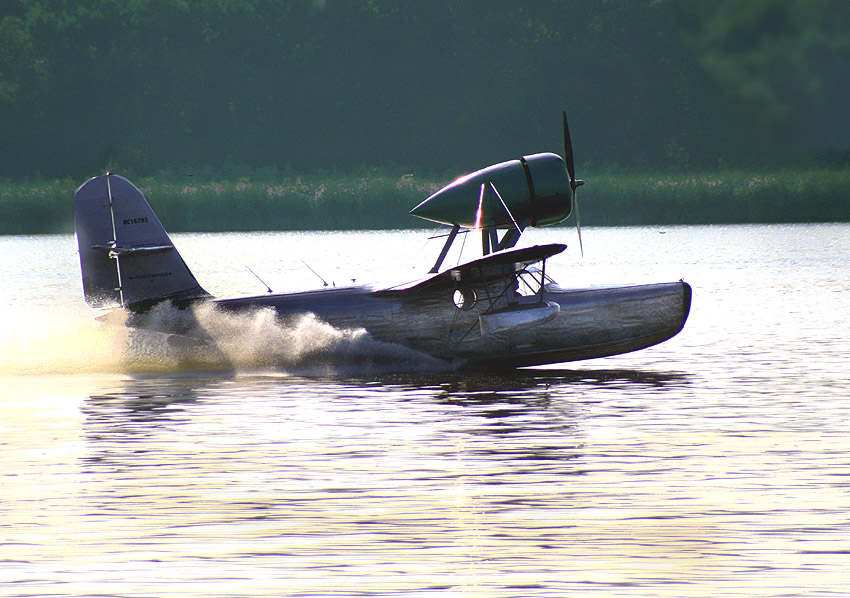

The Fleetwings Seabird was an amphibious utility aircraft designed in 1934-5 by James C. Reddig for Fleetwings, Inc., of Bristol, PA. While the aircraft's basic configuration had a precedent in the design of the Loening Monoduck developed by the Grover Loening Aircraft Company as a personal aircraft for Mr. Loening (for whom Reddig worked from 1929-1933)  The Sea Bird was unusual because of its construction from spot-welded stainless steel. It was a high-wing, wire-braced monoplane, with its engine housed in a nacelle mounted above the wings on struts. The pilot and passengers sat in a fully-enclosed cabin. Fleetwings initially planned to manufacture 50 production units, but at a price approaching $25,000 during the Depression, there proved to be no sustainable market.

General characteristics

• Crew: One pilot
• Capacity: 3 passengers (F-4 prototype); 4 passengers (F-5 production model)
• Length: 32 ft 0 in (9.74 m)
• Wingspan: 40 ft 6 in (12.33 m)
• Height: 12 ft 6 in (3.80 m)
• Wing area: 235 ft² (21.8 m²)
• Empty weight: 2,450 lb (1,112 kg)
• Gross weight: 3,750 lb (1,702 kg)
• Powerplant: 1 × Jacobs L-5, 285 hp (212 kW)

Performance

• Cruise speed: 135 mph (216 km/h)
• Range: 540 miles (870 km)
